DIN 5685 Chain

DIN 5685 Chain is a sort of welded, round steel chain with long or short-length links that are neither calibrated nor tested. DIN 5685 Chain is made by German Standard. The chain is not suitable for lifting applications, nor being subjected to static loads. There are two types of chain DIN 5685, A (short) and C (long). We are able to offer relevant accessories to the chain. Finishes of chain din 5685 are self-colored, black painted, bright zinc painted, galvanized, and hot-dip galvanized.

Contact Us

Product Features:

Material: carbon steel
Standard: DIN 5685
Finish: galvanized

Product Parameters:

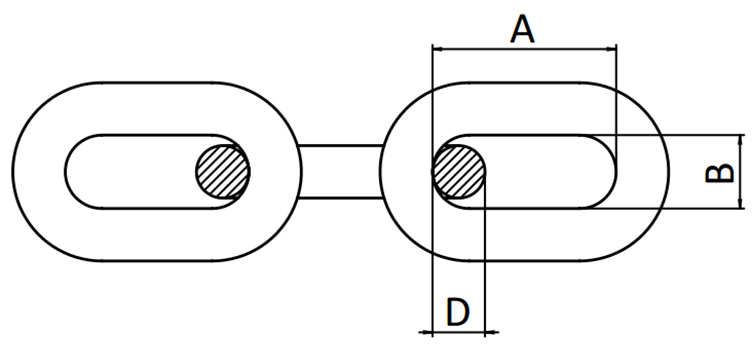

din 5685 chain 2

Type Size Inside Length Outside Width Proof  Load
(kN)		 Breaking Load
(kN)		 Weight per 100 meters
(kg)
mm mm mm
DIN 5685A 2 12 8 0.5 1.25 7
DIN 5685C 22 6
DIN 5685A 2.5 14 10 0.75 2 11
DIN 5685C 24 10
DIN 5685A 3 16 12 1.12 2.8 16.5
DIN 5685C 26 15
DIN 5685A 3.5 18 14 1.5 3.85 22.5
DIN 5685C 28 20
DIN 5685A 4 19 16 2 5 30
DIN 5685C 32 27
DIN 5685A 4.5 20 18 2.5 6.3 39.5
DIN 5685C 34 35
DIN 5685A 5 21 20 3.15 7.75 50
DIN 5685C 35 43
DIN 5685A 5.5 23 22 3.8 9.5 60.5
DIN 5685C 38.5 52
DIN 5685A 6 24 24 4.5 11.5 73
DIN 5685C 42 63
DIN 5685A 6.5 26 26 5.4 13.5 86
DIN 5685C 45.5 74
DIN 5685A 7 28 28 6 15 100
DIN 5685C 49 86
DIN 5685A 8 32 32 8 20 130
DIN 5685C 52 110
DIN 5685A 8.5 34 34 9 22.5 149
DIN 5685C 56 125
DIN 5685A 9 36 36 10 25 165
DIN 5685C 59 141
DIN 5685A 10 40 40 12.5 31 205
DIN 5685C 65 175
DIN 5685A 11 44 44 15 38 250
DIN 5685C 72 211
DIN 5685A 12 48 48 18 45 290
DIN 5685C 78 255
DIN 5685A 13 52 52 21.2 53 345
DIN 5685C 82 295
