DIN 580 Eye Bolt

Home > Products > RIGGING HARDWARE > Eye Bolts & Eye Nuts > DIN 580 Eye Bolt

Product Features:

Material: carbon steel
Standard: DIN 580
Finish: galvanized

Product Parameters:

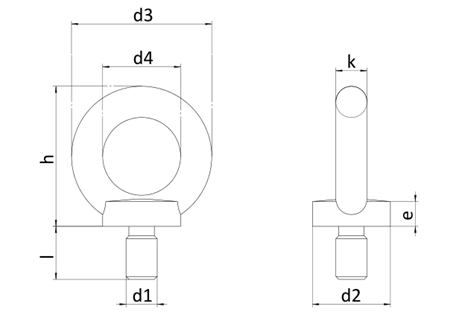

din 580 eye bolt 2

Size (mm)	Working Load Limit (t)	Dimensions (mm)								Weight Each (kg)
Size (mm)	Working Load Limit (t)	d1	d2	d3	d4	e	h	k	I	Weight Each (kg)
M6	0.07	6	20	36	20	6	36	6	13	0.06
M8	0.14	8	20	36	20	6	36	8	13	0.06
M10	0.23	10	25	45	25	8	45	10	17	0.1
M12	0.34	12	30	54	30	10	53	12	20.5	0.17
M14	0.49	14	35	63	35	12	62	14	27	0.19
M16	0.7	16	35	63	35	12	62	14	27	0.28
M18	0.9	18	40	72	40	14	71	16	30	0.3
M20	1.2	20	40	72	40	14	71	16	30	0.45
M22	1.5	22	50	90	50	18	90	20	36	0.49
M24	1.8	24	50	90	50	18	90	20	36	0.88
M27	2.5	27	65	108	60	22	109	24	45	0.93
M30	3.2	30	65	108	60	22	109	24	45	1.6
M33	4.3	33	75	126	70	26	128	28	54	1.72
M36	4.6	36	75	126	70	26	128	28	54	2.67
M39	6.1	39	85	144	80	30	147	32	63	2.8
M42	6.3	42	85	144	80	30	147	32	63	4.13
M45	8	45	100	166	90	35	168	38	68	4.25
M48	8.6	48	100	166	90	35	168	38	68	6.39
M52	9.9	52	110	184	100	38	187	42	78	6.6
M56	11.5	56	110	184	100	38	187	42	78	8.7
M64	16	64	120	206	110	42	208	48	90	12.5
M72	20	72	150	260	140	50	260	60	100	23.8
M80	28	80	170	296	160	55	298	68	112	31
M100	40	100	190	330	180	60	330	75	130	49
