Material: forged steel, quenched and tempered
Safety factor: MBL equals 5 x WLL
Finish: galvanized

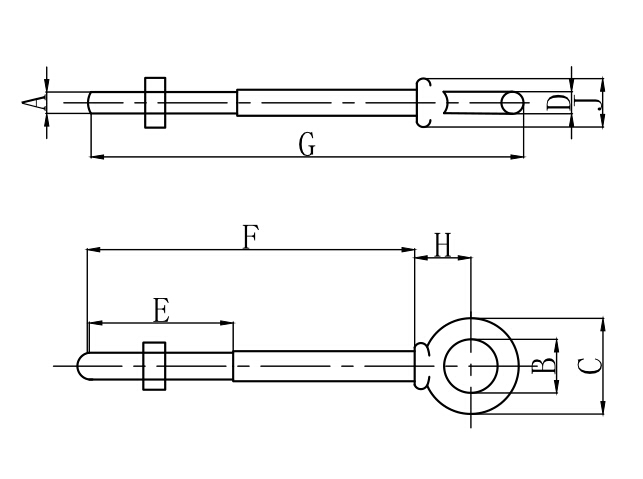

| Shank Diameter & Length | Working Load Limit (t) |
Dimensions (mm) |
Weight Per 100 pcs (kg) |
|||||||||
| in | mm | A | B | C | D | E | F | G | H | J | ||
| 5/16 × 2-1/4 | 7.94×57 | 0.54 | 7.85 | 15.7 | 28.4 | 6.35 | 38.1 | 57 | 89 | 17.5 | 14.2 | 5.67 |
| 5/16 × 4-1/2 | 7.94×108 | 0.54 | 7.85 | 15.7 | 28.4 | 6.35 | 63.5 | 108 | 140 | 17.5 | 14.2 | 8.53 |
| 3/8 × 2-1/2 | 9.53×63.5 | 0.7 | 9.65 | 19.1 | 35.1 | 7.85 | 38.1 | 63.5 | 101 | 19.8 | 16.8 | 9.71 |
| 3/8 × 4-1/2 | 9.53×114 | 0.7 | 9.65 | 19.1 | 35.1 | 7.85 | 63.5 | 114 | 152 | 19.8 | 16.8 | 11.5 |
| 1/2 × 3-1/4 | 12.7×82.5 | 1.18 | 12.7 | 25.4 | 44.5 | 9.65 | 38.1 | 82.5 | 130 | 25.4 | 23.1 | 19.3 |
| 1/2 × 6 | 12.7×152 | 1.18 | 12.7 | 25.4 | 44.5 | 9.65 | 76 | 150 | 200 | 25.4 | 23.1 | 25.8 |
| 5/8 × 4 | 15.9×102 | 2.35 | 15.7 | 31.8 | 57 | 12.7 | 51 | 102 | 164 | 33.3 | 28.4 | 31.1 |
| 5/8 × 6 | 15.9×152 | 2.35 | 15.7 | 31.8 | 57 | 12.7 | 76 | 152 | 214 | 33.3 | 28.4 | 46.4 |
| 3/4 × 4-1/2 | 19.1×114 | 3.26 | 19.1 | 38.1 | 70 | 15.7 | 51 | 114 | 189 | 39.6 | 35.1 | 66 |
| 7/8 × 5 | 22.2×127 | 4.8 | 22.4 | 44.5 | 82.5 | 19.1 | 63.5 | 127 | 215 | 46.7 | 39.6 | 102 |
| 1 × 6 | 25.4×152 | 6.03 | 25.4 | 51 | 95.5 | 22.4 | 76 | 152 | 253 | 53 | 46 | 166 |
| 1 × 6 | 25.4×229 | 6.03 | 25.4 | 51 | 95.5 | 22.4 | 102 | 229 | 329 | 53 | 46 | 192 |
| 1-1/4 × 8 | 31.8×203 | 9.52 | 31.8 | 63.5 | 114 | 25.4 | 102 | 203 | 323 | 62.5 | 58 | 295 |
| 1-1/4 × 12 | 31.8×305 | 9.52 | 31.8 | 63.5 | 114 | 25.4 | 102 | 305 | 425 | 62.5 | 58 | 361 |
| 1-1/2 × 15 | 38.1×381 | 10.8 | 38.1 | 76 | 140 | 31.8 | 152 | 381 | 527 | 76 | 70 | 646 |
Qingdao Voya Rigging Co., Ltd is a leading manufacturer of rigging, lifting, and material handling hardware in China. Our company was established in 2006 and is located in the coastal city of Qingdao. Our main products are chain accessories, wire rope accessories, shackles, turnbuckles, eye blots, eye nuts, swivels, rings, links, snap hooks, quick links, chains, and blocks.
1. Quick Response:
Reply to your inquiry in 24 working hours.
2. Full English Service:
Experienced staff answer all your questions in professional and fluent English.
3. OEM & ODM:
Customized size, length, and design are available.
4. Creative One-Stop Solutions:
The exclusive and unique solution can be provided to our customers by our well-trained and professional engineers.
Are you a factory or trading company?
We are a factory focused on rigging hardware for over 15 years. Our main products are chain accessories, wire rope accessories, shackles, turnbuckles, hooks, eye blots, eye nuts, swivels, rings, links, snap hooks, chains, and blocks. We have 6 production lines with advanced machines over 30 like friction presses, air hammers, punching machines, etc. We own a warehouse of over 3000 square meters.
What products do you supply?
As mentioned above, Qingdao Voya Rigging is capable of supplying all kinds of chain accessories, wire rope accessories, rigging hardware, chains, wire ropes, fasteners, and related hardware.
How do you control quality?
Starting from the selection of raw materials, we only select high-quality steel from well-known steel groups. The production process is standardized and refined. 100% of finished products are tested. Check before packing.
Rich Experience:
Focused on rigging for over 15 years, rich experience in production.
Competitive Price:
Owned factory, we can provide a more competitive price based on the same quality level by more efficient management in every process.
Professional Sales Team:
More than 10 professional sales staff, let you enjoy worry-free and efficient communication.
