Grade 8 (G80) Lifting Chain

Grade 8 (G80) Lifting Chain is a sort of short link welded chain manufactured to meet the European standard EN 818-2. The grade 8 lifting chain is also called the G80 lifting chain. It is of medium tolerance for use in chain slings and for general lifting purposes. The chain is heat-treated and complying with the general conditions of acceptance. We offer a range of nominal sizes of the chain is from 4 mm to 32mm.

Product Features:

Material: alloy steel, quenched and tempered
Safety factor: MBL equals 4 x WLL
Standard: EN 818-2
Finish: painted black

Product Parameters:

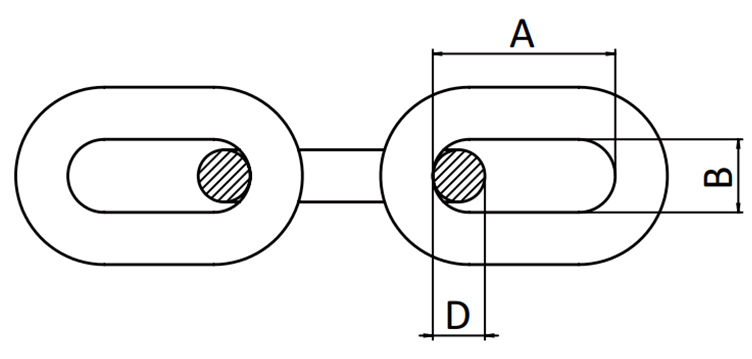

grade 8 (g80) lifting chain 2

Working Load Limit
Breaking Load
Weight Per Meter
6 1.12 4.48 6 18 7.8 0.79
7 1.5 6 7 21 9.1 1.07
8 2 8 8 24 10.4 1.38
10 3.15 12.6 10 30 13 2.2
13 5.3 21.2 13 39 16.9 3.8
16 8 32 16 48 20.8 5.63
18 10 40 18 54 23.4 6.85
20 12.5 50 20 60 26 8.6
22 15 60 22 66 28.6 10.2
26 21.2 84.8 26 78 33.8 14.87
32 31.5 126 32 96 41.6 22.29
