HG-223 Turnbuckle with Hook & Hook

HG-223 Turnbuckle with Hook & Hook is a very common steel turnbuckle throughout the rigging industry. The hook on the end makes for easy connections/disconnections for the turnbuckle. With the body of the turnbuckle having a reverse thread on each end, it makes the assembly exceptionally easy to tighten and loosen by simply twisting the body of the turnbuckle. HG-223 Turnbuckles with Hook & Hook are available in sizes ranging from 1/4’’ to 1’’ to fit every project and are made from super carbon steel for maximum corrosion resistance and durability. They are ideal for marine and industrial applications.

Contact Us

Product Features:

Material: carbon steel
End fittings are Quenched and Tempered, bodies heat treated by normalizing.
Safety factor: MBL equals 5 x WLL
Finish: hot-dip galvanized

Product Parameters:

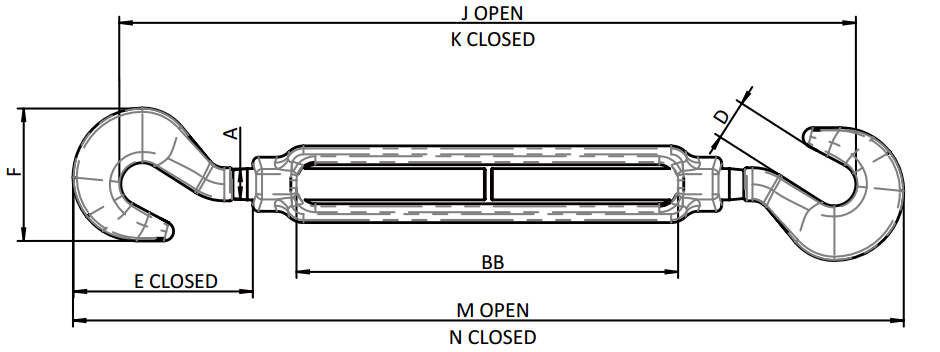

hg 223 turnbuckle with hook & hook 2

Thread Diameter & Take Up Working Load Limit
(t)		 Dimensions
(mm)		 Weight Each
(kg)
in mm A D E
closed		 F J
open		 K
closed		 M
open		 N
closed		 BB
1/4 × 4 6.35 × 102 0.18 6.35 11.2 42.3 32.3 249 187 310 208 103 0.15
5/16 × 4-1/2 7.94 × 114 0.32 7.94 12.7 50.7 38.1 294 218 358 243 116 0.24
3/8 × 6 9.53 × 152 0.45 9.53 14.2 57.8 44.7 387 270 453 301 155 0.38
1/2 × 6 12.7 × 152 0.68 12.7 16.5 89.7 57.9 457 335 527 375 153 0.85
1/2 × 12 12.7 × 305 0.68 12.7 16.5 89.2 57.9 769 495 839 535 314 1.26
5/8 × 6 15.9 × 152 1.02 15.9 22.9 108 71.4 495 368 572 419 153 1.46
5/8 × 12 15.9 × 305 1.02 15.9 22.9 107 71.4 809 529 885 580 315 2.08
3/4 × 6 19.1 × 152 1.36 19.1 24.9 129 84.6 538 406 620 467 156 1.91
3/4 × 12 19.1 × 305 1.36 19.1 24.9 128 84.6 853 568 935 630 320 3.14
3/4 × 18 19.1 × 457 1.36 19.1 24.9 129 84.6 1158 721 1240 782 471 3.92
7/8 × 12 22.2 × 305 1.81 22.2 28.7 148 96 886 597 972 667 309 4.47
1 × 12 25.4 × 305 2.27 25.4 31.8 167 108 929 637 1019 714 309 6.7
