Lengthen the tap

HG-226 Turnbuckle with Eye & Eye

HG-226 Turnbuckle with Eye & Eye is one of the most common steel turnbuckles. Made of galvanized steel, these turnbuckles are formed to withstand the nastiest of corrosive environments. HG-226 Turnbuckles with Eye & Eye have elongated eyes on each end for less stress on the eye and for easier connection of other rigging hardware. The body of the turnbuckle features a reverse thread on each end to allow for tightening/loosening by simply turning the body of the turnbuckle. These turnbuckles are available in sizes ranging from 1/4’’ to 2-3/4’’ to fit every project.

Contact Us

Product Features:

Material: carbon steel
End fittings are Quenched and Tempered, bodies heat treated by normalizing.
Safety factor: MBL equals 5 x WLL
Finish: hot-dip galvanized

Product Parameters:

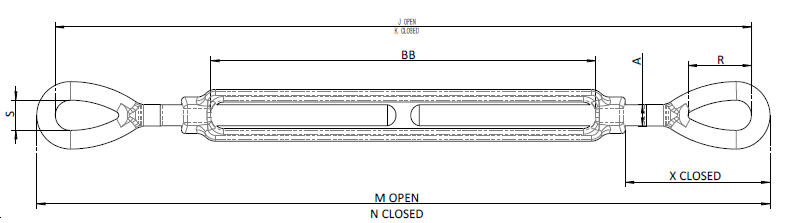

hg 226 turnbuckle with eye & eye 2

Thread Diameter & Take Up Working Load Limit
(t)		 Dimensions
(mm)		 Weight Each
(kg)
in mm A J
open		 K
closed		 M
open		 N
closed		 R S X
closed		 BB
1/4 × 4 6.35 × 102 0.23 6.35 303 202 314 213 20.6 8.64 44.6 103 0.13
5/16 × 4-1/2 7.94 × 114 0.36 7.94 354 239 368 253 24.1 11.2 55.8 116 0.22
3/8 × 6 9.53 × 152 0.54 9.53 446 294 463 311 28.7 13.5 62.9 155 0.34
1/2 × 6 12.7 × 152 1 12.7 506 354 529 376 35.8 18 90.4 153 0.78
1/2 × 12 12.7 × 305 1 12.7 819 514 841 536 35.8 18 89.9 314 1.19
5/8 × 6 15.9 × 152 1.59 15.9 552 399 577 425 45.7 22.4 110 153 1.25
5/8 × 12 15.9 × 305 1.59 15.9 865 560 891 586 45.7 22.4 110 315 1.87
3/4 × 6 19.1 × 152 2.36 19.1 590 438 622 470 53.1 25.4 130 156 1.91
3/4 × 12 19.1 × 305 2.36 19.1 905 600 937 632 53.1 25.4 129 320 2.78
3/4 × 18 19.1 × 457 2.36 19.1 1210 753 1242 785 53.1 25.4 130 471 3.55
7/8 × 12 22.2 × 305 3.27 22.2 932 627 970 665 60.5 31.8 147 309 4.01
7/8 × 18 22.2 × 457 3.27 22.2 1249 792 1287 830 60.5 31.8 147 473 5.22
1 × 6 25.4 × 152 4.54 25.4 666 514 711 559 76.2 36.3 165 157 4.36
1 × 12 25.4 × 305 4.54 25.4 971 666 1016 711 76.2 36.3 165 309 5.88
1 × 18 25.4 × 457 4.54 25.4 1276 819 1321 864 76.2 36.3 165 462 7.4
1 × 24 25.4 × 610 4.54 25.4 1596 987 1641 1031 76.2 36.3 164 631 9.14
1-1/4 × 12 31.8 × 305 6.89 31.8 1070 766 1127 822 91.2 46.2 216 306 9.01
1-1/4 × 18 31.8 × 457 6.89 31.8 1375 918 1432 975 91.2 46.2 216 459 10.8
1-1/4 × 24 31.8 × 610 6.89 31.8 1694 1085 1751 1141 91.2 46.2 216 625 12.6
1-1/2 × 12 38.1 × 305 9.71 38.1 1124 819 1187 882 104 53.8 240 313 13
1-1/2 × 18 38.1 × 457 9.71 38.1 1428 971 1492 1035 104 53.8 240 456 15.4
1-1/2 × 24 38.1 × 610 9.71 38.1 1749 1139 1813 1203 104 53.8 240 633 17.9
1-3/4 × 18 44.5 × 457 12.7 44.5 1457 1000 1534 1076 118 60.5 253 456 23
1-3/4 × 24 44.5 × 610 12.7 44.5 1762 1153 1838 1229 118 60.5 253 619 26.4
2 × 24 51 × 610 16.8 51 1922 1313 2011 1402 148 68.3 331 622 37.9
2-1/2 × 24 63.5 × 610 27.2 63.5 2011 1402 2113 1503 165 79.2 350 625 67.4
2-3/4 × 24 70 × 610 34 70 2066 1456 2180 1571 178 82.6 383 626 79.1
